1400C 1550C Vacuum Controlled Atmosphere And High Temperature Furnace

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-HY-ZKG3016
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

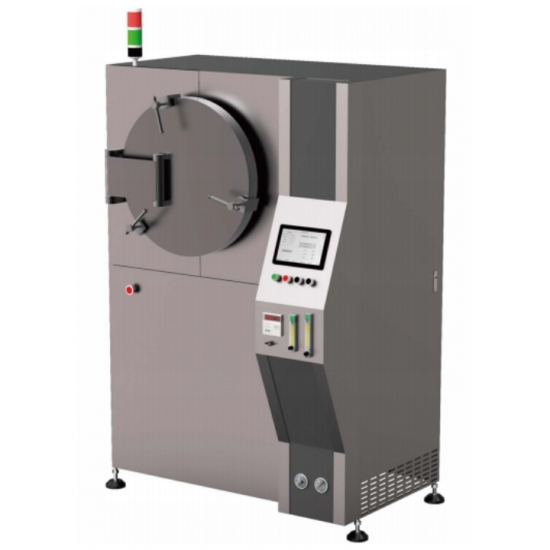

1400C 1550C Vacuum Controlled Atmosphere And High Temperature Furnace

Summarize

HY-ZKG microwave multifunctional experimental furnace is a dual-structure microwave vacuum experimental workstation, with vacuum controlled atmosphere and high temperature experimental conditions, suitable for the synthesis, sintering, calcination and heat treatment of various materials under vacuum or atmosphere conditions.

Main feature

1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;

2) It has two kinds of furnace cavity structure, tube type and box type, which is convenient and simple to switch;

3) Using the original insulation structure, energy saving and high efficiency, no pollution to materials;

4) Professional vacuum design, unique sealing technology, multi-channel atmosphere conditions, can meet a variety of experimental needs;

5) Rapid heating, greatly shorten the process time.

Technical parameter

Model Parameter	HY-ZKG3016
Voltage	380±10V，50Hz
Microwave output power	0.01~2.80kW, continuously adjustable (Panasonic)
Heating space	Box type: 120x120x80mm (L x W x H); Tube type: φ40x80mm (diameter x length)
Microwave frequency	2.45GHz
Operating temperature	1550℃ under atmosphere protection; 1400℃ under vacuum
Temperature measurement method	Infrared
Static limit vacuum	≤10-3Pa
Atmosphere system	Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc
Control mode	Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)
Control program	Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven
Anti-microwave leakage	Microwave leakage level <1mW/cm2
Safety protection	Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm
Main body (L x W x H)	About 1100x600x1950mm
